Copyright © 2006 jsd

1  Thinking is Important, Learnable, and Portable

  1. More-or-less everybody should have a high level of thinking skills.

    It is very dangerous to live in a society where a few people have high-level thinking skills, and the rest don’t. Democracy does not work well in such a society.

    Also: People who have high-level thinking skills are generally more productive than people who don’t. As a consequence, jobs that require high-level thinking generally pay better than jobs that don’t.

  2. Thinking skills can be learned, and can be taught. This is the main subject of this document, as discussed at length below. First, though, consider the analogy to running:

    Almost everybody knows how to run, after a fashion. However, if you sign up for the track team, or the soccer team, or anything like that, the coach will train you to run better, possibly a lot better.   Everybody knows how to think. It would be incorrect and insulting to tell someone they don’t know how to think. However, the fact remains that a good science class will train you to think better, possibly a lot better.

  3. Thinking skills are portable.

    That is, thinking skills are by-and-large separate from domain knowledge. To solve real-world problems in a particular domain, you need knowledge about the domain plus general thinking skills.

    If you have high-level thinking skills, you can become proficient in a new domain just by learning the new domain-specific knowledge; you don’t need to learn the thinking skills all over again.

    Einstein said “An education is what remains after you have forgotten everything you learned in school.” I’m pretty sure his point was that thinking skills remain, even after all the narrow domain-specific factoids have been forgotten (or have become irrelevant).

    Anecdote: Once upon a time, a friend and I were conducting sea trials in a large, brand-new sailboat. The two of us had worked together before, debugging large computer programs. As you can imagine, debugging a computer program requires a detailed understanding of the computer language ... whereas debugging a boat requires considerable knowledge about how boats work, which is quite a different body of knowledge. However, both of us were struck by the fact that we used essentially the same process in both cases. We checked the typical case, then we checked the edges of the envelope, then we checked the corners of the envelope. When we observed small anomalies, we made a note of them, and then did whatever was necessary to make them reproducible. And so forth. We both knew what had to be done, and we each knew what the other guy was thinking, which helped us to work quickly and efficiently.

*   Contents

1  Thinking is Important, Learnable, and Portable
2  Game-Show Tests
3  Some Basic Advice: Learning and Problem-Solving
4  Multiple Methods of Solution
5  A Next Step: Puzzles and Riddles
6  Ill-Posed Problems
7  Beware of Hypotheses Omitted from Consideration
8  A Few Basic Problem-Solving Skills
9  Scientific Methods
10  Memorizing and/or Deriving
11  Thinking Includes Algorithms, Mnemonics, Memory, and Feeling
12  Creative Thinking Also Requires Methods and Memories
13  Groups versus One-on-One Teaching
14  Difficulty versus Importance
15  Some Favorite Puzzles
15.1  Inverse Mapping
15.2  Nine Dots
15.3  The Barometer Story
15.4  Mississippi Flow
15.5  South / East / North
16  Teaching Critical Thinking
16.1  Positive Steps
16.2  Double Negative : Getting Rid of Nonsense
17  A Call to Action
18  References

2  Game-Show Tests

  1. In recent years, schools have been placing more and more emphasis on a certain type of test. The following properties are typical of such tests:

    I call such things “game-show tests”. They cause some serious problems, as we now discuss. (Additional discussion can be found in reference 1.)

  2. It is distinctly unhelpful to place much weight on game-show tests. You can see at a glance that such tests have several built-in weaknesses.
  3. I find that game-show tests are not good for predicting anything I care about. I would never hire somebody based on a good test score, and I would never reject somebody based on a bad test score. I’ve known too many absolutely brilliant people who didn’t do well on game-show tests.

    I used to say that such tests don’t predict anything at all, but if things keep going the way they are, such tests will begin to predict success in school ... for the simple reason that success in school is being measured, more and more, by such tests. This is circular in a truly ghastly way. It encourages rote learning and discourages thinking.

  4. There is a natural tendency for teachers to teach to the test. That can be either a good thing or a bad thing, depending on how good the test is. We need better tests. We need much, much better tests.

    In particular, we need tests that measure thinking skills.

  5. On the plus side: Most kids enjoy thinking. Most kids enjoy riddles, if properly presented. They entertain each other by telling riddles. Any reasonable-sized bookstore will carry books of riddles – including physics riddles – even though they don’t carry textbooks.

    If you do it right, kids will increase their thinking skills and enjoy it.

  6. On the minus side: In many (but not all) textbooks, the end-of-chapter problems do not require thinking, and indeed train students not to think. Instead, the problems call for rote regurgitation of factoids presented in the chapter.

    After years of a steady diet of such problems, students will be alarmed and recalcitrant if you suddenly assign them homework that requires nontrivial thinking. You will have to explain that your course is different from other courses, past and present. Then you will have to patiently teach them the required thinking skills. Then you can assign problems that require thinking, with gradually increasing complexity.

3  Some Basic Advice: Learning and Problem-Solving

Here are a few ideas that apply to almost any field:

  1. Learn how to learn : Mull over each new idea, to see now it is connected to everything else you know. Make this a habit, a reflex. Do this in class. Do this all day every day.

    This is hugely important. A memory is not useful, and hardly even counts as a memory, if you cannot recall it when needed. Thinking about the connections increases the usefulness of each memory, by increasing the number of ways in which it can be recalled. See reference 3.

  2. Check your work : any problem worth doing is worth doing in two different ways, as a check. See section 4 and section 15.4.
  3. Basic math skills.
  4. Estimation and qualitative reasoning. This includes scaling, dimensions, units, et cetera. See reference 4 and reference 5.
  5. Conservation laws and symmetry principles.
  6. Draw the diagram. If it’s electronics, draw the circuit diagram. If it’s relativity, draw the spacetime diagram. Don’t try to solve the problem in your head if you don’t have to. As the problems get longer, more complicated, and/or trickier, this gets more and more important.
  7. Don’t hurry so much that you make dumb mistakes. There is no advantage to getting the wrong answer quickly.
  8. Neatness helps. See reference 6 for more on this.
  9. Paper is cheap. If you need more paper, get more paper. Again, see reference 6 for more on this.
  10. If you’re playing a game, know the rules of the game. If you’re taking a test, know the rules of the test. See reference 7.
  11. Some more-advanced principles and methods for doing science are discussed in reference 8.
  12. Thinking clearly about cause-and-effect relationships is particularly important ... and all too often, this is very badly taught. This cuts right to the core of what science is. As Galileo and others have pointed out, physics must describe what happens, but it need not – and usually does not – explain why something happens. This is discussed in detail in reference 9.
  13. You should apply critical thinking skills to all of your thinking, all day every day. Critical thinking is not some sort of add-on. It is not something you save for special occasions. It has to be baked in, like the oatmeal in oatmeal cookies. You can’t bake the cookies without oatmeal, and then sprinkle oatmeal on them afterwards. See also section 16.

4  Multiple Methods of Solution

Here’s a classic example: The task is to add 198 plus 215. The easiest way to solve this problem in your head is to rearrange it as (215 + (200 − 2)) which is 415 − 2 which is 413. The small point is that by rearranging it, a lot of carrying can be avoided. The larger points are:

In this case, the straightforward approach would have worked; it just would have been inconvenient. This stands in contrast to the nine dots puzzle (section 15.2), where the straightforward approach doesn’t work, and an imaginative approach is absolutely necessary.

For the Mississippi Flow problem (section 15.4), there are two methods of solution, both of which are roughly equally convenient and equally accurate. Having two independent methods of solution is tremendously valuable, because it increases the reliability of the result.

In some quarters, the term “compensation” is applied to situations like this. I’m not sure exactly what it’s supposed to mean, but I think it just means rearranging the problem to make it easier to solve. I deem “compensation” to be an ugly and not-very-descriptive term. I prefer to talk about multiple, imaginative, devious, indirect, and/or outside-the-box approaches to the problem.

5  A Next Step: Puzzles and Riddles

Loosely speaking, any problem that requires thinking is called a puzzle or (equivalently) a riddle. Also, most puzzles have the further property that it is much harder to find a solution than it is to verify and understand a solution once it has been found. For example, consider the “eleven words in one” puzzle (reference 10). A given solution can be verified directly ... but a direct attack to find the solution would be thousands of times harder, since it would require searching through all the six-letter words in the English language.

Note: Easy verification is related to what computer scientists call the NP property. (If you don’t know what this means, don’t worry about it.) This is also related to what some puzzle aficionados call this the “Aha!” property, especially if the puzzle hinges on a single point that is obvious in retrospect.

Puzzles can be classified along various axes, as we now discuss.

One axis indicates how much domain knowledge the puzzle requires. Let’s call this the K axis. There are thousands of available puzzles that are near K=0. They are completely self-contained, i.e. the statement of the problem contains all the information necessary to solve it. Good starting places include the “20 questions” game (reference 11) and the “twelve coins” puzzle (reference 12). Reference 13 is a classic source; some of them are word puzzles, while others involve (in subtle ways) a fair bit of mathematical sophistication. There are also whole series of books by the likes of Raymond Smullyan and Martin Gardner. Self-contained puzzles are useful as a starting point, so that students can get accustomed to thinking even before they have much domain knowledge. As it says in reference 14, “Children lack knowledge and experience, but not reasoning ability.”

Moving along the K axis we come to problems that are “almost” self-contained, in the sense that they depend on facts that are unstated but well-known and easy to bring to mind. Farther along this axis are problems that require some amount of domain-specific knowledge. Reference 15 is a well-known source of open-ended questions and puzzles that involve modest amounts of physics knowledge.

At the far end of the K axis we find problems that require broad and deep knowledge. To illustrate the range of the K axis, consider the following contrast:

The “Who Owns the Fish” problem (reference 16) is intricate enough to scare away most people, but it is completely self-contained and well-posed. The statement of the problem contains just the information required to solve the problem ... no less, and essentially no more.   The “Mississippi Flow” problem (section 15.4) problem is very far from being self-contained. It requires you to rack your brain searching for information that might help solve the problem. A wide search is necessary, because seemingly very disparate tidbits of information turn out to be helpful. This is characteristic of a wide range of real-world problems.

We can also define a B axis, which indicates to what extent a direct approach suffices, or not. The nine-dots puzzle (section 15.2) is the quintessential example and the source of the expression “outside-the-box thinking”. Other venerable examples where the direct approach fails include the dog-duck-grain problem and the orchard with 10 trees in five straight rows of four trees each.

If an indirect approach is needed, you need to use your imagination to find it, as discussed in section 4.

We can also define a H axis, which indicates how large is the space of hypotheses that must be considered. For example, in “four hats” puzzle in reference 16, there are four main hypotheses that must be considered. In contrast, in the “Who Owns the Fish” puzzle in reference 16, if you formulate the problem in the obvious way there are billions of hypotheses to be considered. Similarly, chess puzzles commonly involve millions or billions of possibilities.

As large as those numbers are, they are still finite, and one could enumerate all the possibilities, in principle, by straightforward means. This contrasts with Bongard problems (reference 17) where there are no a priori limits on what hypotheses should be considered. Students generally enjoy Bongard problems. They teach some useful thinking skills, including the necessity of looking at a problem from more than one viewpoint.

It is also worth noting that some puzzles (and many real-world problems) have multiple solutions; that is, there are multiple members of the solution set. As an elementary example, suppose the desired answer is known to solve the equation x2 = 81. If you find a solution to the equation, you may or may not have found the desired answer.

A much more challenging example is to find the complete solution-set to the “south/east/north triangle problem” (section 15.5). Many people find one solution and express absolute certainty that it is the only solution. It’s not.

For some reason that I don’t fully understand, finding one solution creates a tremendous psychological barrier to finding another solution. Perhaps this is just a result of poor training: the students have been trained to expect that every homework problem will have only one solution.

We now turn to a topic that is somewhat related but somewhat different, namely methods of solution. (This topic was introduced in section 4.) For example, there are two completely independent ways of finding how much water flows in the Mississippi. That means we can ask questions at two different metaphysical levels:

a) How much water?
b) What are the methods?

Question (a) has essentially only one answer, but question (b) has a solution-set with at least two members.

Again it seems that finding one answer to question (b) creates a tremendous psychological barrier to finding another answer.

It must be emphasized that being able to solve question (a) in two different ways is a tremendously valuable skill, because it vastly decreases the chance of making an undetected error.

6  Ill-Posed Problems

We now consider problems that are underspecified, overspecified, or otherwise ill-posed. The most troublesome kind of ill-posed problems involve inconsistencies. That is, sometimes the “facts” you’re working with are not entirely true.

To deal with such problems, you need to move beyond black-and-white notions of true-and-false; instead you need to weigh the probabilities. Similarly, you are no longer dealing with facts; instead you are weighing the evidence.

Some of the inconsistencies are exogenous, i.e. they come from what other people have told you. Other inconsistencies are endogenous, i.e. they come from assumptions that you have made on your own.

Some “recreational” puzzles, especially those that involve outside-the-box thinking, are useful for developing a subset of critical thinking skills, because they tempt you to make false assumptions, and force you to question your assumptions.

On the other hand, the overwhelming majority of “recreational” puzzles are well-posed, which means they don’t really exercise the full range of critical thinking skills.

For more discussion of ill-posed problems, see reference 18.

7  Beware of Hypotheses Omitted from Consideration

By way of example, suppose you were asked to fit a sine wave to a set of measured points as shown in figure 1. The obvious solution to this problem is shown in figure 2.

vapnik-sin-pts
Figure 1: Some Points to be Fitted
vapnik-sin-1
Figure 2: Sine Wave Fitted to Points

That looks like a good fit. The amplitude, frequency, and phase of the fitted function are determined to high precision, according to the standard formulas.

Even so, some crucial questions remain: How sure are you that this is the right answer? How well does this fitted function predict the position of the next measured point? These are tricky questions, because an unrestricted search for the sine wave that best fits the points is almost certainly not the best way to predict the next point. Figure 3 is the key to understanding why this is so.

vapnik-sin-2
Figure 3: Sine Wave Over-Fitted to the Same Points

It turns out that for almost any set of points, you can always find some sine wave that goes through the points, as closely as you please, if you make the frequency high enough. However, this can be considered an extreme example of overfitting and the over-fitted sine wave will be useless for predicting the next point. Another term that gets used in this connection is bias-variance tradeoff. These facts can be quantified and formalized using the Vapnik-Chernovenkis dimensionality and related ideas. A sine wave has an infinite VC dimensionality.

The sine wave stands in contrast to a polynomial with N adjustable coefficients, for which the VC dimensionality is at most N. That means if you fit the polynomial to a large number of points, large compared to N, the coefficients will be well determined and the polynomial will be a good predictor.

There are some deep ideas here, ideas of proof, disproof, predictive power, et cetera. For more on this, see the machine-learning literature, especially PAC learning. Reference 19 is a good place to start.

This sine-wave example calls attention to the fact that the family of fitting functions we are using (sine waves with adjustable amplitude, frequency, and phase) has an infinite VC dimensionality, even though there are only three adjustable parameters. We see that three data points – or even a couple dozen data points – are nowhere near sufficient to pin down these three parameters. This tells us that VC dimensionality is the important concept, and “number of parameters” is only an approximate concept, sometimes valid but definitely not always.

fit-two-rectangles
Figure 4: Fitting Two Rectangles

Another example of what can go wrong is shown in figure 4. The black curve represents the raw data. We have lots and lots of data points, with very high precision. We know a priori that the area under the black curve is the sum of two rectangles – a red rectangle and a blue rectangle. All we need to do is a simple fit, to determine the height, width, and center of the two rectangles. As you can see from the figure, there are two equally good solutions. There are two equally perfect fits. Alas, this leaves us with very considerable uncertainty about the area, width, and center of the blue rectangle.

Some problems in this category can be solved by introducing some sort of regularizer, as discussed in reference 18.

Additional examples to show how easy it is for people to fool themselves into “knowing” that they have “the” answer (when in fact they have not considered all the possibilities) can be found in reference 20.

8  A Few Basic Problem-Solving Skills

  1. One commonly hears advice along the lines of “don’t give up” or “Be more patient”. I consider that too simplistic, and too open to misinterpretation. It would be better to say that you need to develop judgement about when to give up.

    Know when to hold ’em and when to fold ’em.


    The school experience – especially the standardized “game-show” testing discussed in section 2 – gives many people the destructive idea that if it takes more then 45 seconds to solve a problem, they should give up. In the real world, you don’t get 40 questions in 30 minutes. That’s off by multiple orders of magnitude. More commonly you get 4 questions in 300 minutes, or something even beyond that. Therefore you must learn not to give up too soon.   At some point you should give up. You don’t want to spend the rest of your life stuck on some problem that you can’t solve. If you don’t want to give up entirely, you can set the problem aside temporarily, and return to it later, after you have acquired more knowledge and skill.

    If you give up on the main goal you are admitting defeat. Many people are too quick to give up on the main goal.   Many problems require exploring the possibilities. That involves choosing tentative, hypothetical sub-goals. If such a hypothesis doesn’t work out satisfactorily, you need to backtrack and redo the analysis, choosing the next item from the list of hypotheses. Many people are too slow to give up on an untenable hypothesis (and therefore too slow to begin consideration of alternative hypotheses).

    The process of exploring the hypotheses can often be formalized as a search tree. Many chess problems involve search trees. Another example is searching a maze. Giving up on dead-end sub-goals is absolutely necessary for making progress toward the main goal.

    Keep your eyes on the prize.

  2. Real-world problems are almost never cut-and-dried, and are almost never multiple choice. Open-ended questions predominate. Story problems predominate. Get used to it.
  3. Real-world questions require you to search through everything you know, searching for seemingly-disparate facts that can be brought to bear on the problem. The “Mississippi Flow” problem is a good illustration of this. (This is very unlike end-of-chapter problems that involve only things you learned in that chapter.)
  4. Look at the problem from more than one viewpoint. Consider all the plausible scenarios. Consider a wide range of hypotheses. The more open-ended the problem, the wider the range of hypotheses must be.
  5. Consider all of the evidence, or at least a representative sample of the evidence. You will get into all sorts of trouble if you fixate on a particular hypothesis and pay attention only to evidence that supports that hypothesis. (This is called “selecting the data” and it is a Bad Thing.) For each hypothesis, you should check equally diligently for supporting evidence and conflicting evidence.
  6. Sometimes it helps to do “warm-up exercises”. That is, if you can’t do the problem as stated, try attacking a simpler similar problem. For example, if you can’t immediately see how to put 8 non-interacting queens on an 8×8 chess board, see if you can put 4 of them on a 4×4 board.

    Indeed, sometimes solving a small instance of the problem puts you in a position to solve all larger instances by induction.

  7. There may be more than one element in the solution-set. See section 6 and reference 18.
  8. Don’t panic if you need to know something that doesn’t appear in the statement of the problem. Figure it out. Real-world problems are often overdetermined, underdetermined, or otherwise ill-posed. See reference 18.

    Figure it out.


9  Scientific Methods

Any discussion of critical thinking must necessarily cover much of the same ground as a discussion of scientific methods. See reference 8.

10  Memorizing and/or Deriving

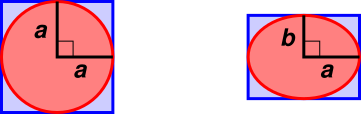

Reference 5 explains how a scaling argument based on figure 5 can be used to figure out the formula for the area of an ellipse.

scale-ellipse
Figure 5: Scaling Y but Not X

This leaves us with multiple ways of figuring out the area of an ellipse: You could just plain remember the formula from high-school geometry, and/or you could look it up, and/or you could easily reconstruct it whenever it is needed.

I know some people who have quite bad memory who are successful physicists. They carefully remember a few fundamental facts, and rederive everything else on an as-needed basis. For example, with a little practice, you can rederive the formula for the area of an ellipse faster than most people can recall it from memory (and with less probability of error).

It may be that some people develop extra-sharp thinking skills as a way of compensating for bad memory ... in analogy to the way that blind persons often develop extra-sharp hearing skills. However, I am not going to recommend bad memory any more than I would recommend blindness. Memory is a valuable skill. Obviously it is best to have a good memory and good thinking skills.

Feynman said that knowledge is like a grand tapestry. A forgotten fact is like a hole in the tapestry. You should be able to repair the hole in several different ways, by reweaving down from the top, or up from the bottom, or in from the sides. Any important fact can be rederived in numerous ways, because our knowledge has numerous interconnections.

Therefore: You should practice rederiving things. Even if it is something that you remember, rederive it anyway. This provides multiple advantages: First, it serves as a cross-check on your memory. Secondly, it builds up your thinking skills. Thirdly, it improves your understanding and recall of facts related to the one you are looking for, by exercising the all-important connections between facts.

Remember that any important formula should be derivable in multiple different ways, so if you derived it one way last time, try to derive it another way next time.

Some things can’t be derived, so you just have to remember them.

Conversely, some things can’t be remembered, so you just have to figure them out. In particular, if/when you visit unexplored territory, it is nice to be able to derive new formulas on the spot. It is a really good feeling to know that even though you are in unexplored territory, you are not lost. Based on your good thinking skills, you can move around more freely than most people do in familiar territory.

In contrast, the guy who tries to get by on memory alone, to the neglect of good thinking skills, will get seriously stuck as soon as he sets foot in unexplored territory, because the facts he needs are nowhere in his memory.

Last but not least: There is no clear-cut distinction between remembering something and figuring it out ... and the distinction, if any, has zero importance. Memory is itself a thought process. Sometimes it is a subconscious process, and sometimes it is a recognizably conscious process, but there is no important distinction. As an example, if I need to know the square root of 40, I can never remember the numerical value, but I know at least two ways of figuring it out in my head. I can figure it out to 1% accuracy in less time than it takes to talk about it, and figure it out to 0.1% accuracy almost as quickly. There’s thinking involved, but not much in the way of creative thinking, because I know exactly what procedures to use. You could ask whether this counts as memory, or as thinking, or both ... but the answer doesn’t matter.

In the 1890s William James (reference 3) described memory in terms of the associations between ideas:

Each of the associates is a hook to which [the memory] hangs, a means to fish it up when sunk below the surface. Together they form a network of attachments by which it is woven into the entire tissue of our thought. The ’secret of a good memory’ is thus the secret of forming diverse and multiple associations with every fact we care to retain. But this forming of associations with a fact, – what is it but thinking about the fact as much as possible? Briefly, then, of two men with the same outward experiences, the one who thinks over his experiences most, and weaves them into the most systematic relations with each other, will be the one with the best memory.

11  Thinking Includes Algorithms, Mnemonics, Memory, and Feeling

Once upon a time, there was a sophomore who heard that fruits and vegetables are good for you. So he ate nothing but apples and celery for three months. Then he died.

Some members of the community reacted by saying “Apples are corruption! Celery is emblematic of everything that is wrong with society today! We must destroy all fruits and vegetables immediately!”

I beg to differ. I still think fruits and vegetables are good for you. I don’t think the problem was what the guy ate ... the problem was what they guy didn’t eat.

Let’s turn our attention now to algorithms and mnemonics.

I get really tired of that.

My point is that properly-chosen algorithms / mnemonics / equations / procedures / formalisms / methods are good for you. Really they are. If a student has some of those tools but lacks a gut feeling for how things work, the problem is not what the student has ... the problem is what the student doesn’t have.

Everyone needs a balanced diet. That is, everyone needs gut feelings and formalism.

  1. Without some gut feeling, you wouldn’t know how to derive the equations. You wouldn’t even know which equations were worth deriving. And you wouldn’t know how to use whatever equations you were given.
  2. Without the formalism, you have no good way of knowing whether your gut feelings are correct. Furthermore, if you’re not methodical, errors will creep into your work.

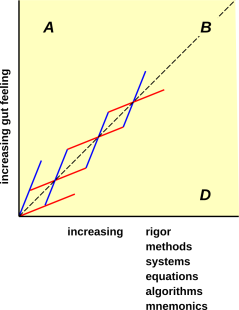

theory-feeling
Figure 6: Theory and Gut Feeling

Real understanding is represented by point B, in the upper-right corner, where there is a high level of feeling for the subject backed up by a high level of rigor.

As indicated by the red and blue arrows, you don’t get to the goal in one step. You start out with a little bit of feeling and a little bit of formalism. They reinforce each other and provide a foundation for the next step. The red leverages the blue and the blue leverages the red. And so you itsy-bitsy-spider your way up and over toward point B.

Let’s be clear:

  1. There is a problem day in and day out with people who do not have enough feeling for the subject. This is a problem, to some extent, everywhere and at all times. Feynman railed about this at every opportunity. He discussed the Brazilian version of the problem in reference 21.

    The problem is not what the students have; the problem is what they don’t have. They don’t have a feeling for the subject.

    This situation is represented by point D in figure 6. It sometimes goes by the name “rigor mortis”, which is a pretty good name for rigor without feeling.

  2. At the opposite extreme, there is also a huge problem when people try to get by on their gut feelings, to the neglect of formalism, algorithms, mnemonics, et cetera.

    This manifests itself in many ways. As an example, sometimes people sling buzzwords around without any real understanding. If they had checked their feelings against the theory, they would have known their feelings were nonsense.

    Many additional examples are classified under the educationalese term “negative transference”. That means your gut feeling based on experience in one domain might give you the wrong answer when applied in another domain.

    I’m not saying that gut feelings are bad. I’m saying that gut feelings have to be checked against the facts.

    Red Queen: “Why, sometimes I’ve believed as many as six impossible things before breakfast.”
         — Lewis Carroll

    Also, I’m saying that sometimes having some sophistication gives you useful information about the limits of validity of your gut feelings.

    Lady Thiang: “This is a man who thinks with his heart, His heart is not always wise.”
         — Oscar Hammerstein

This sheds some light on the so-called “new math” and its relationship to “old math”, which has remained an unsettled issue since the 1960s. (If you’re interested in the history of this, reference 22 is a reasonably informative, non-hysterical, non-polemical news article.) This issue is commonly referred to as the “Math Wars” but I don’t like to use that term. The warlike aspects are a discredit to everyone involved. The sensible approach is to use smart, efficient algorithms1 and to understand the principles involved.

Some people object to algorithms because they can be memorized. Of course algorithms can be memorized, but that’s usually irrelevant, sometimes an advantage, and never a disadvantage. As mentioned in section 10, I don’t recommend doing away with memory, for the same reason I don’t recommend blindness. Memory is not the opposite of thought, nor the enemy of thought. Using an algorithm is not necessarily the non-thoughtful approach; usually it is the most thoughtful approach. Algorithms are like tools. When I tighten a bolt, I use a wrench. That does not make me any less skillful than the guy who tries to tighten the bolt with his bare hands. I’m allowed to use the wrench, even though I didn’t invent it or even manufacture it.

Continuing that thought: There have many occasions where I did invent and construct a specialized wrench or other tool to solve a specialized problem. Building custom tools and jigs requires an investment, but often this approach pays off handsomely, leading to overall faster and better results, compared to the brute-force head-on approach.

It is always possible to learn an algorithm in a mindless way, and to apply the algorithm by rote. That’s unsurprising, because any tool can be abused. Similarly equations can be abused by students who plug and chug, without any thought as to what the symbols mean. However:

You should never use “equation” as a synonym for plug-and-chug. You should never use “algorithm” as a synonym for mindless. You should never use “systematic” as a synonym for rote.   If you mean rote, say “rote”. If you mean mindless, say “mindless”. If you mean plug-and-chug, say “plug-and-chug”.

Having a tool does not oblige you to abuse the tool.   You must not blame the presence of one tool for the absence of another.

A tool that is well-suited for “Task A” might be laughably ill-suited for “Task B” – and vice versa. It’s your job to figure out which tool to use for the task at hand. This requires judgement.

As an example: If you want a numerical solution to a system of N linear equations in N unknowns, Gaussian elimination is incomparably more appropriate than Cramer’s rule. It is much less laborious and more numerically stable. See reference 23. In order of descending cleverness we have:

We should also say a few words about crutches:

Sometimes there is a legitimate need for a crutch. That can happen if somebody has a broken leg .... after you have taken direct action to treat the underlying malady and provided the user has been briefed on the correct usage and limitations of the crutch.   On the other hand, crutches can actually cause secondary injuries, especially if overused or abused. For a person with normal abilities, a crutch is worse than useless. It gets in the way, and hinders development of normal performance.

So ... there are upsides and downsides to crutches. We should not over-react to the upsides or the downsides. I’ve seen some algorithms – such as the infamous “density triangle” – that should be categorized as crutches. They may be useful in some rare, temporary situations, but otherwise are worse than useless.

If you see somebody using a crutch that is not really needed, it is a good idea to wean them off the crutch, sooner rather than later.

Last but not least: The right answer depends on the background and developmental level of the student. If a five year old kid asks “how does this flashlight work”, he does not want a lecture on the chemistry of batteries or the physics of LEDs. A more appropriate answer would be something purely operational, such as “you need to twist it, like so.”

If the student actually wants a more detailed answer, he can always ask a more detailed question.

12  Creative Thinking Also Requires Methods and Memories

In section 11 we argued that memory is part of thought (not the opposite of thought or the enemy of thought). Similarly we argued that algorithms and methods are part of thought (not the opposite of thought or the enemy of thought). These parts reinforce each other in a lattice, as shown in figure 6.

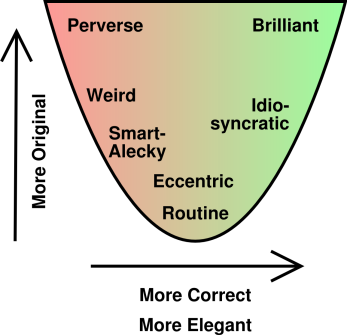

The same applies to creativity. Not all thinking counts as creative thinking, but if you are going to do any creative thinking, it will necessarily be based on a foundation of memories and methods, of gut feelings and algorithms.

Most inventions can be described as pushing forward the frontier of knowledge. In order to do this, you need to know where the frontier is! In almost all cases, usefully original thinking is not wildly original. For example, Beethoven is famous for breaking the rules of classical music theory ... but he did not break all the rules at once. He broke a rule here and a rule there, in crafty and purposeful ways.

13  Groups versus One-on-One Teaching

Consider the following scenario: I pose the “Mississippi Flow” problem to two different people who have nominally similar educational backgrounds and experience.

The usual case is that I work with the person for 45 minutes, telling them “don’t give up” and “if you need to know that, figure it out” ... and giving a series of hints. At the end of this time, they have a solution. They realize in retrospect that in principle they could have solved the problem, in the sense that they knew everything necessary to permit a solution. At the same time, they realize that in practice they could never have found the solution on their own, because they would not have been able to organize their thinking in such a way as to call attention to the relevant facts.   In a not-very-small minority of the cases, the person can solve the puzzle very very quickly. They outline the method of solution in about four seconds, and then take another few seconds to carry out the required multiplications.

The fact that proficiency with this sort of problem-solving is so unevenly distributed makes this sort of problem difficult to discuss in a classroom situation. The class as a whole, working as a team, can solve the problem relatively quickly, but that defeats one of the major purposes, namely giving each person experience racking their brain to find and organize the required bits of information. I don’t really know how to solve this problem. It would be ideal to spend 45 minutes with each student one-on-one, going over this puzzle, but that would be prohibitively expensive in a typical school setting.

Similar considerations apply to homework. If the purpose of the exercise is to get experience racking one’s brain, the purpose is defeated if students google the solution, or get the solution from a classmate. This problem cannot be prevented, but it can be fairly well controlled, as follows: You can separate the sheep from the goats by assigning a modified version of the puzzle on a closed-book in-class quiz. Someone who understands the method of solution will be able to solve the modified version instantly, whereas someone who merely copied the solution will not. (I don’t know of any suitable modifications of the “Mississippi Flow” problem, but others such as the “Who Owns the Fish” problem are readily modifiable.)

14  Difficulty versus Importance

Let us return to the question of what is a puzzle. Consider the contrast:

Many puzzles have the unfortunate property that even if you solve the puzzle, it’s still just a puzzle. The reward for solving it is trivial, artificial, or very indirect. Most homework problems are in this category; that is, the teacher already knows the right answer, and is not going to make any life-or-death decisions based on the student’s answer.   In many real-world situations, there is a lot riding on the question. It may truly be a life-and-death decision.

As my friend Larry says: If it’s not worth doing, it’s not worth doing right.   If it’s really worth doing, it’s worth double-checking to make sure you did it right.

Consider someone who is learning to ride a bike. Why are they doing it? They typically are not doing it for the challenge; they are not doing it because the learning process is difficult. They are doing it because being able to ride a bike will empower them to go places and do things they could not do otherwise.

Consider the following four scenarios:

Problem A is hard, and the solution is worth $10.00.   Problem B is hard, and the solution is worth $100.00.

Problem C is easy, and the solution is worth $10.00.   Problem D is easy, and the solution is worth $100.00.

Given the choice, I would prefer problem B over problem A every time. That is, we should not value puzzles because they are hard; instead we should value puzzles if and when the answer is important. Homework problems have indirect value if (and only if) they teach skills that will have direct value later.

It is also true that given the choice, I would prefer problem C over problem A. Easy problems are preferable to hard problems, other things being equal.

Of course problem D is the most preferable of all.

More generally, I need to do a cost/benefit analysis. Given the choice between an easy, low-value problem and a hard, high-value problem, a tradeoff must be made. Making wise tradeoffs requires analysis and judgement.

In any case, we need to maintain a clear understanding of what is primary versus what is secondary, what is directly valuable versus what is only indirectly valuable, and what is real versus what is artificial.

Therefore do not get carried away with doing puzzles for the sake of doing puzzles. Choose puzzles that cultivate some useful general skill. Explicitly discuss what skills are being taught, and why. (See section 8 for some basic thoughts about this.)

The idea is neither to work harder, nor to work less hard. The idea is to get more done, by being clever. Things that formerly seemed difficult become easy once you know how. Above all, you should learn to solve important problems.

For more on this, see reference 24.

15  Some Favorite Puzzles

Some of these are interesting because they have more than one answer, i.e. the solution-set is not a singleton. Others are interesting because even though there is only one final answer, there are multiple methods of solution.

15.1  Inverse Mapping

I have a quantity x such that x2=81. Please tell me the value of x. How do you know? How sure are you?

15.2  Nine Dots

Arrange nine dots in three rows of three:





The task is to draw a path consisting of four straight contiguous line segments, such that the path goes through all of the dots.

15.3  The Barometer Story

Given a barometer, how many different ways can you think of for measuring the height of a building?

This is a classic, although the original story (reference 25) set up the question differently, not quite so directly.

15.4  Mississippi Flow

Please give me an estimate of how much Mississippi River water flows past New Orleans in a year. This is a closed-book question; don’t look anything up; figure it out.

15.5  South / East / North

You start out at point A. You travel strictly south for one mile. You then make a right-angle turn and travel strictly east for one mile. You then make another right-angle turn and travel strictly north for one mile. It turns out that you are now back at point A. So, please tell me, where is point A? How do you know? How sure are you?

Note: For present purposes, we approximate the earth as being perfectly spherical. Point A is on the surface, and all travel takes place along the surface.

16  Teaching Critical Thinking

As mentioned in section 3, the critical thinking must be baked into the thinking process, like the oatmeal in oatmeal cookies, not sprinkled on as an afterthought. So it is with the teaching of critical thinking: It has to be baked into the curriculum. It is not something you can advocate for 15 minutes on Tuesday morning and then ignore – or penalize – the rest of the time.

16.1  Positive Steps

Suggestion: On occasion, assign the same exercise more than once, with instructions to find the answer by a different method. This is not easy, but it can undoubtedly be done. For example, more than 250 different proofs of the Pythagorean theorem are known.

Discuss the various solutions. Start by deciding which are correct ... but don’t stop there. It is also appropriate to evaluate the degree of originality ... but don’t stop there, either. As shown in figure 7, we don’t want to cultivate originality just for the sake of originality; we want to cultivate elegance and good style.

original-style
Figure 7: Good Style, Not Just Originality

Originality without correctness is the domain of kooks and crackpots. Originality without good style is sometimes perverse and sometimes just weird. Good style is subjective, but it is nevertheless real and important. For more about the role of style, elegance, and artistry in science, see reference 26.

16.2  Double Negative : Getting Rid of Nonsense

Here’s a constructive suggestion that is simple yet super-important: Start by removing the thousands of little things that reward conformity and rote regurgitation while penalizing creativity and critical thinking. You don’t have to remove all of them at once; just remove them a few at a time, as you come to them, all day every day.

For example, all too often on page 101 of the textbook there will be a definition, and then on page 105 there will be an “exercise” that calls for regurgitation of the definition, word for word. Suggestion: don’t assign that exercise. Come up with some exercise that requires applying the idea rather than memorizing empty words. If you can’t come up with such an exercise, then the idea must not be very important, and you need not assign any exercise whatsoever on that topic.

Here’s an even more obvious and more important suggestion: Don’t require students to learn things that can’t possibly be true. For example:

Another suggestion: Set up a program that rewards students for finding errors in the textbook. The reward should depend on the importance of the error: One point for simple spelling errors, and many points for fundamental misconceptions.

Similarly, assign students to find examples of nonsense in real life. There are plenty of blatant examples, including advertisements for “low calorie energy bars” and so forth. The aisles of a typical drug store contain homeopathic “drugs”, magnetic-therapy bracelets, and many other products that could not possibly work as advertised. Many news articles cannot keep straight the distinction between a millisievert and a millisievert per hour. Politicians promise to reduce taxes and balance the budget without cutting government programs. More subtle forms of nonsense are even more abundant.

Last but not least, get rid of the high-stakes game-show tests, as discussed in section 2.

17  A Call to Action

Thinking is hard. Teaching and learning are hard. Teaching and learning critical thinking skills is particularly hard.

We need to do these things, even though they are hard. Some specific suggestions and hints on how to do this were presented above. See the table of contents.

I would particularly like to emphasize one step that needs to be taken. It’s a big step in the right direction. We must do away with high-stakes “standardized” multiple-choice tests. Just do away with them entirely and immediately. It is simply outrageous that we would judge students, teachers, and/or schools based on such horrible tests. For more on this, see reference 1.

18  References

1.
John Denker, “State-Mandated High-Stakes Trivia Tests – Or Not” ./eclbe-testing.htm

2.
John Denker, “Breadth and Depth of Learning” ./breadth-depth.htm

3.
William James, Talks to Teachers On Psychology; and to Students on Some of Life’s Ideals (1899). http://books.google.com/books?id=XYSsCLlF_mkCprintsec=frontcover Chapter XII deals specifically with memory. http://ebooks.adelaide.edu.au/j/james/william/talks/chapter12.html

4.
John Denker, “Dimensional Analysis” ./dimensional-analysis.htm

5.
John Denker, “Scaling Laws” ./scaling.htm

6.
John Denker, “Hints on How to Do Math” ./math-hints.htm

7.
John Denker “Multiple-Guess Tests” ./multiple-guess.htm

8.
John Denker, “Scientific Methods” ./scientific-methods.htm

9.
John Denker, "Cause and Effect" ./causation.htm

10.
Find a six-letter English word that contains within it eleven other English words, without re-ordering the letters. I know of three different solutions. (This is an elaboration of a problem given in reference 16.)

11.
John Denker, “Twenty Questions” ./twenty-questions.htm

12.
John Denker, “The Twelve-Coins Puzzle” ./twelve-coins.htm

13.
Sam Loyd’s Cyclopedia of 5000 Puzzles, Tricks and Conundrums – With Answers Lamb Publishing Corp. (1914) http://www.mathpuzzle.com/loyd/Thumbnails.html

14.
John D. Bransford, Ann L. Brown, and Rodney R. Cocking, editors “How People Learn: Brain, Mind, Experience, and School” (National Academy Press, 1999) http://newton.nap.edu/html/howpeople1/

15.
Jearl Walker, The Flying Circus of Physics

16.
NIH / NIEHS “Tuff Stuff Riddles” http://www.niehs.nih.gov/kids/rd7.htm

17.
Bongard problems, discussion: http://www.foundalis.com/res/diss_research.html
Index of Bongard problems: http://www.foundalis.com/res/bps/bpidx.htm

18.
John Denker, “How to Deal with Ill-Posed Questions” ./ill-posed.htm

19.
David Haussler, "An Overview of the Probably Almost Correct (PAC) Learning Framework" http://www.cbse.ucsc.edu/staff/haussler_pubs/smo.pdf

20.
Some examples where it is a challenge to consider all the possibilities: ./ill-posed.htm#sec-string
./ill-posed.htm#sec-yo-yo
./ill-posed.htm#sec-s-e-n

21.
Richard Feynman, Surely You’re Joking, Mr. Feynman. The passage about rote versus feeling is quoted at http://www.jsharrison.com/korea/2004/02/ (search for "in regard to education").

22.
Jocelyn Noveck, “Renegade parents teaching ’old math’ on the sly” Associated Press (20 July 2008).

23.
John Denker, “Balancing Reaction Equations using Gaussian Elimination” ./gauss-elim.htm

24.
John Denker, “How to Evaluate Creative Ideas” ./projectology.htm

25.
Alexander Calandra, “The Barometer Story” Current Science, Teacher’s Edition (1964). http://www.mrao.cam.ac.uk/~steve/astrophysics/webpages/barometer_story.htm

26.
Paul Lockhart, “A Mathematician’s Lament” http://www.maa.org/devlin/LockhartsLament.pdf

27.
John Denker “Measurements and Uncertainties” ./uncertainty.htm

28.
John Denker, “Chemical versus Physical Change?” ./chemical-physical.htm

29.
John Denker “Some Pernicious Misconceptions” ./misconceptions.htm

1
See reference 6 for ways to make long division and long multiplication more efficient.
[Contents]

Copyright © 2006 jsd

_
